Department: R&D |
|
|
Product name: IP65 LED WATERPROOF LAMP |
|
|
Model No
|
EA10-20W-700(A) |
|
EA10-24W-1000(A) |
|
|
EA10-24W-1300(A) |
|
|
EA10-36W-1300(A) |
|
|
EA10-36W-1600(A) |
|
|
EA10-50W-1600(A) |
|
|
1.Technical Paramenters (Test Conditions:25℃/55-%60%Humidity) |
||||||
|
Item Code |
EA10-20W- 700(A) |
EA10-24W- 1000(A) |
EA10-24W- 1300(A) |
EA10-36W- 1300(A) |
EA10-36W- 1600(A) |
EA10-50W- 1600(A) |
|
Power(W)+/-10% |
20W |
24W |
24W |
36W |
36W |
50W |
|
Input Voltage/Frequency |
AC 220-240V 50/60Hz |
|||||
|
Installation |
Easy and quick to install under celling or on surface |
|||||
|

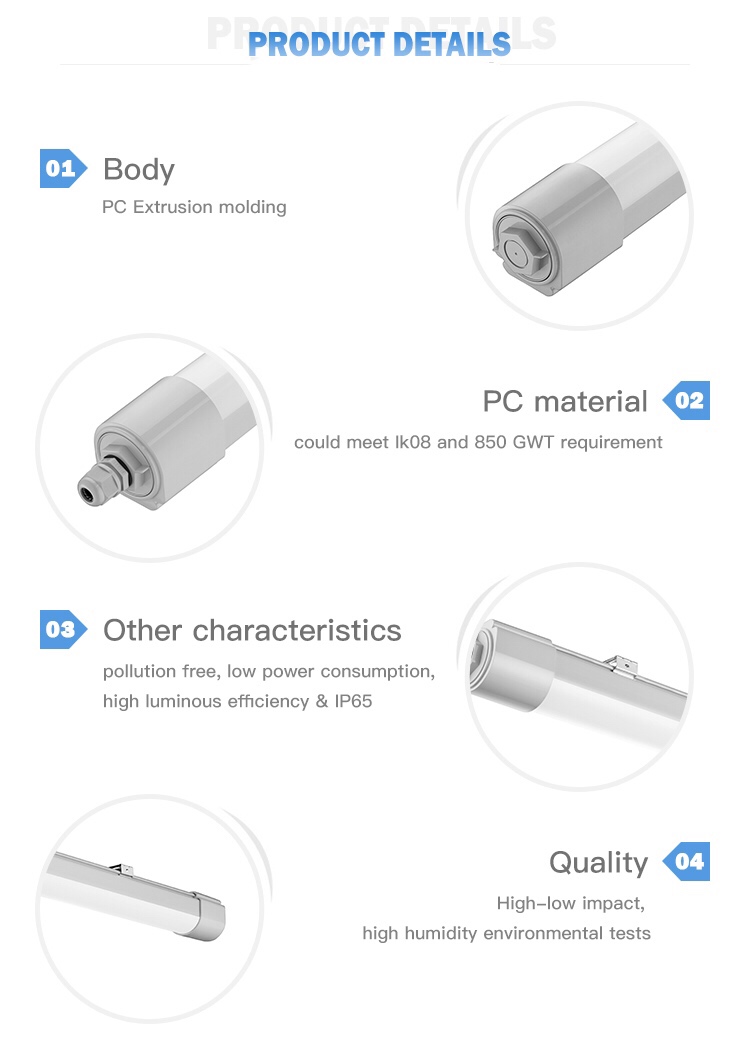

Housing/Diffuser |
PC material,could meet Ik08 and 850 GWT requirement |
|||||
|
Driver |
Osram / Philips / Tridonic / Chinese local brand |
|||||
|
LED Brand |
LG 2835 / EVERLIGHT 2835 |
|||||
|
CCT |
2700-6500K (ANSI C78.377) |
|||||
|
CRI |
> 80 |
|||||
|
Light efficiency |
125lm/W |
|||||
|
5000K/Opal Diffuser Light Output(+/- 3%) |
2,500 lm |
3,000 lm |
3,000 lm |
4,500 lm |
4,500 lm |
6,250 lm |
|
Power factor |
PF>0.9 |
|||||
|
Beam Angel |
120° |
|||||
|
IP Rating |
IP65 |
|||||
|
Warranty |
3 Year |
|||||
|
Operating temp range |
-20 to +35 |
|||||
|
Product Size (mm) |
700*60*60 |
1000*60*60 |
1300*60*60 |
1300*60*60 |
1600*60*60 |
1600*60*60 |
|
Carton Size (mm) |
735*280*210 |
1035*280*210 |
1335*210*210 |
1335*210*210 |
1635*210*145 |
1635*210*145 |
|
Q’ty/CTN (pcs) |
12 |
12 |
9 |
9 |
6 |
6 |
