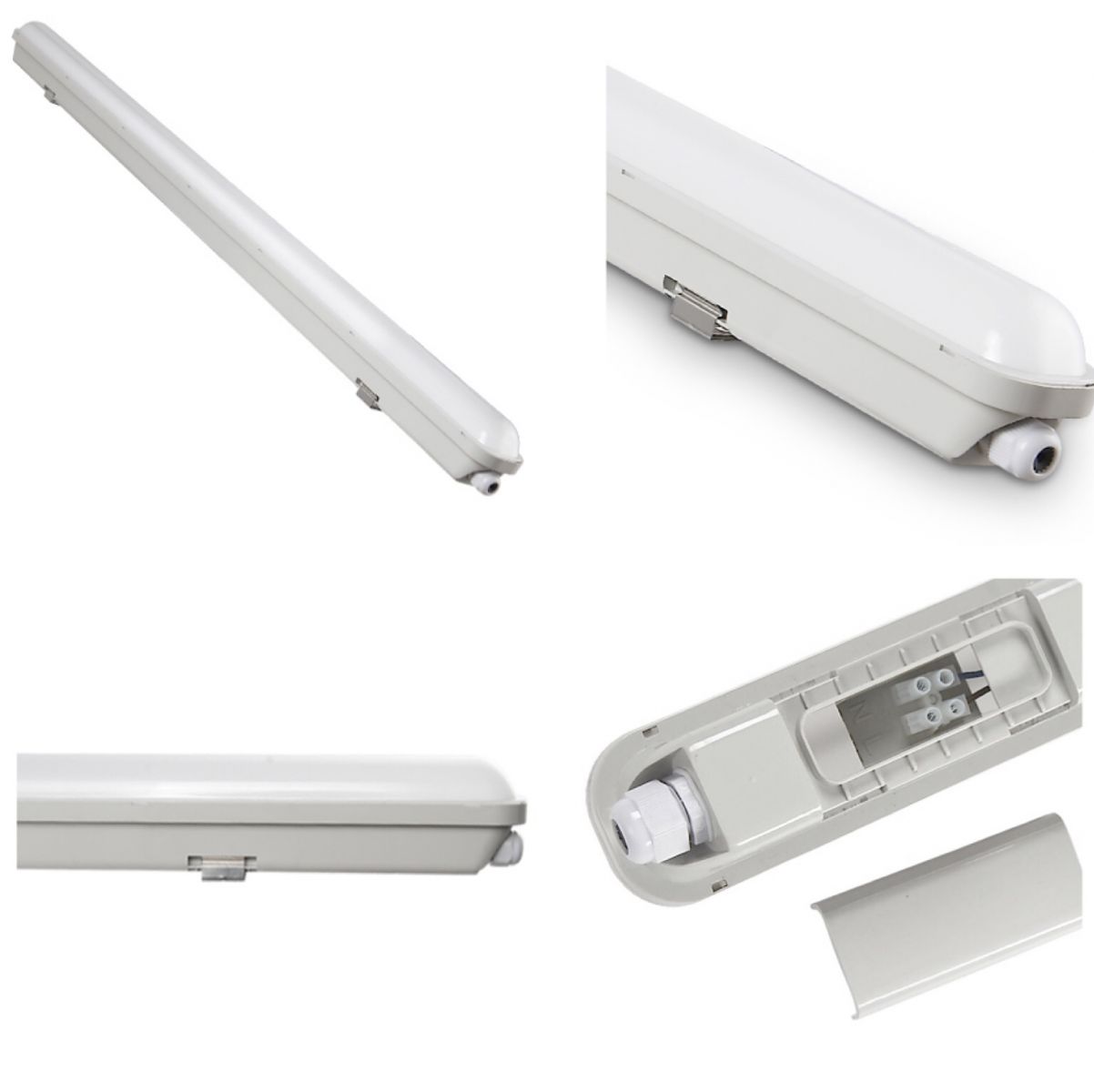

| Product Name | Tri-proof Light |
| Model | EAL06A-S |
| Protection Level | Class II |
| IP Level | IP65 |
| Certificates | GS, EMC, CB, ERP |

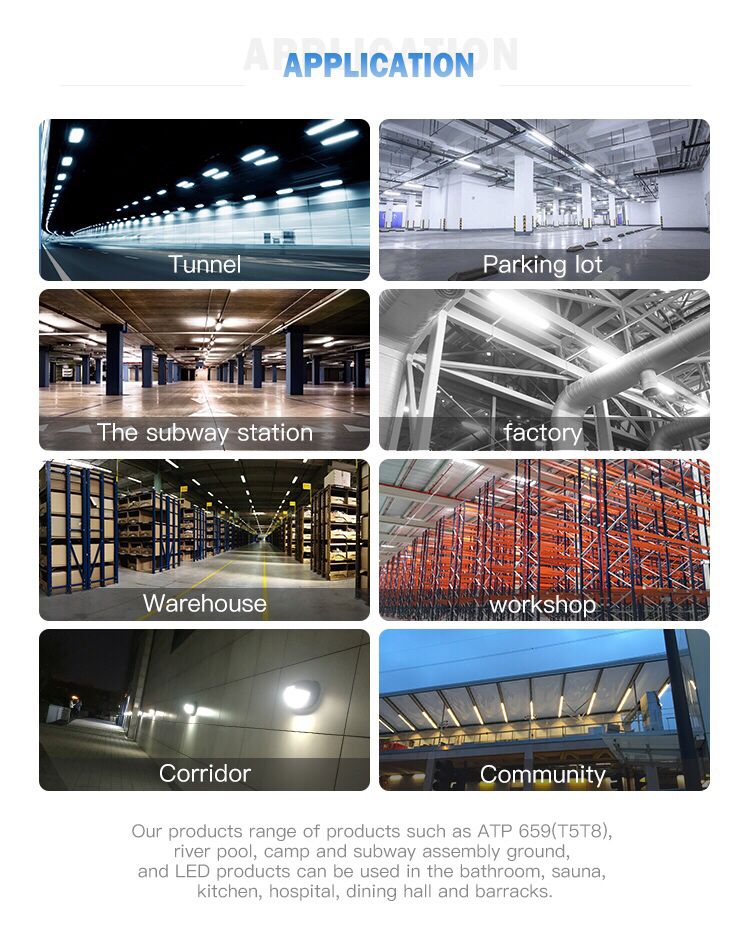

| Usage | strongly corrosive,dusty,wet,rainy places |
| Warranty | 3years |
| Lamp Base Material | ABS PC |
| Lamp Cover Material | PC |
| Working Temperature | -20~40°C |
| Installation | Ceiling Mounted / Suspending |
| Input Voltage | 220-240V |
| Color Temperature | 2700-6500K |
| Sensor | Optional |
| Emergency | Optional |

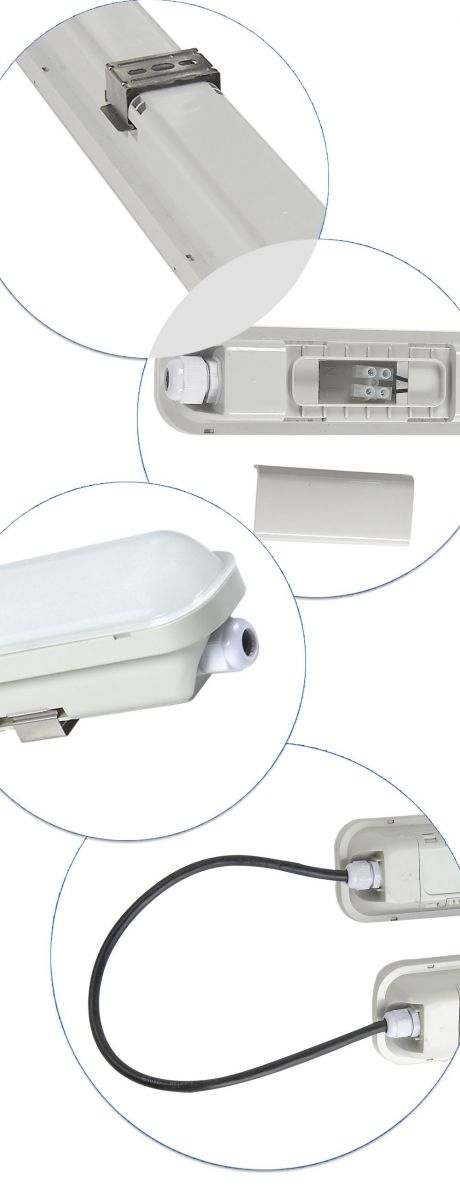

| Through Wiring | Optional |
| Model | Wattage | LED | Lumen | Light Efficiency | Q’ty/ctn | Packaging size |
| EAL06A-06S-10 | 10 | 2835 0.2W | 900lm | 90 lm/w | 20pcs | 617*283*395mm |
| EAL06A-06S-15 | 15 | 2835 0.5W | 1400lm | 93 lm/w | 20pcs | 617*283*395mm |
| EAL06A-12S-20 | 20 | 2835 0.2W | 1800lm | 90 lm/w | 15pcs | 1207*216*395mm |
| EAL06A-12S-30 | 30 | 2835 0.5W | 2800lm | 93 lm/w | 15pcs | 1207*216*395mm |
| EAL06A-15S-30 | 30 | 5730 0.5W | 3000lm | 100 lm/w | 12pcs | 1527*216*320mm |
| EAL06A-15S-40 | 40 | 5730 0.5W | 4000lm | 100 lm/w | 12pcs | 1527*216*320mm |
